What is a Roasting tube furnace? heating furnace specifications, models, and parameters

Roasting tube furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the product looks atmospheric.，It is a product series that integrates Metal melting and casting, Improve production efficiency, Metal tempering, Metal forging heating and Metal heat treatment，is designed by One-combustion energy saving with advanced technology。The following is to introduce the Roasting tube furnace:

1、Brief introduction of Roasting tube furnace

Roasting tube furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，it has been widely used in war industry, automobile, war industry, surface treatment, machinery and other industries。

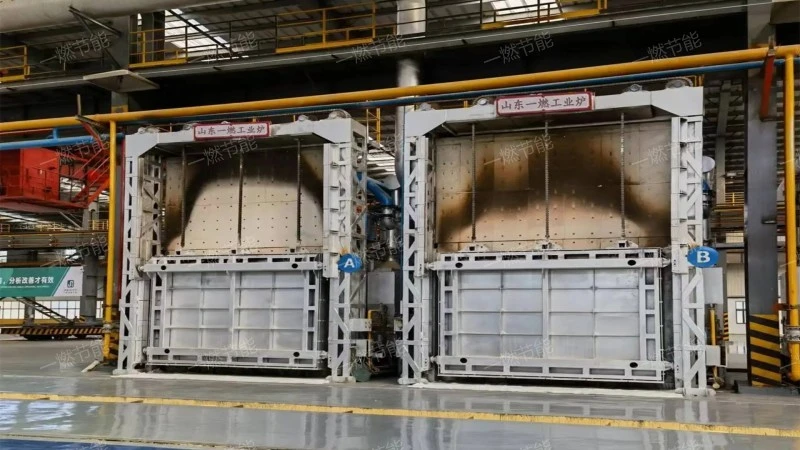

Roasting tube furnace

2、Roasting tube furnace structure

The Roasting tube furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. furnace chamber

A space for holding metallic materials for heating.

4. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

5. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

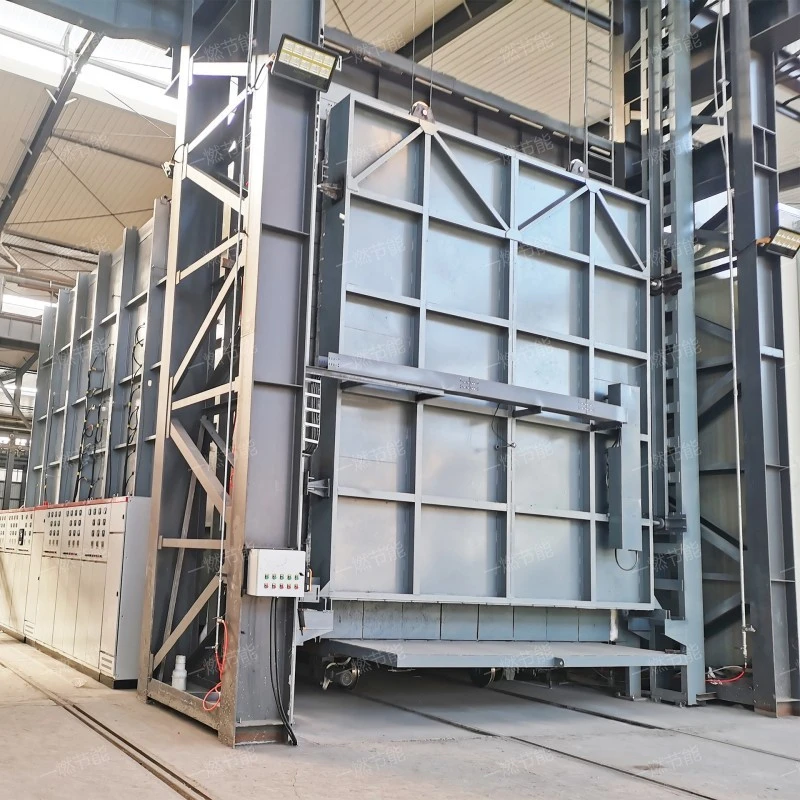

Roasting tube furnace

3、Roasting tube furnace introduction video

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Roasting tube furnacet operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Roasting tube furnace

As you can see from the live video.，One-combustion energy saving It is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

4、Roasting tube furnace function

Roasting tube furnaceit has the functions of Casting heating, heat treatment, temper, hardening and tempering and Forging heating，usually used in pharmacy, chemical industry, material, shipping, heat treatment and other fields。

Roasting tube furnace

5、Roasting tube furnace principle

Roasting tube furnaceat the start of the operation,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，multifunctional, with functions such as hardening and tempering, Casting heating, normalizing, heat treatment and anneal，the product looks beautiful.。

Roasting tube furnace

Roasting tube furnaceit has the characteristics of energy saving and environmental protection, Strong adaptability, Stable and reliable, Easy to maintain and Stable and reliable，it is widely used inelectron,building materials,aerospace,metallurgy,light industry and other industries，at work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.。
