What is a Regenerative gas through heating furnace? Introduction to the principle of forging furnace structure

Regenerative gas through heating furnaceIt is a forging heating device using gas as fuel.，the advantage is Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.。The following is to introduce the Regenerative gas through heating furnace:

1、Brief introduction of Regenerative gas through heating furnace

Regenerative gas through heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，is carefully developed by One-combustion energy saving combined with advanced technology。

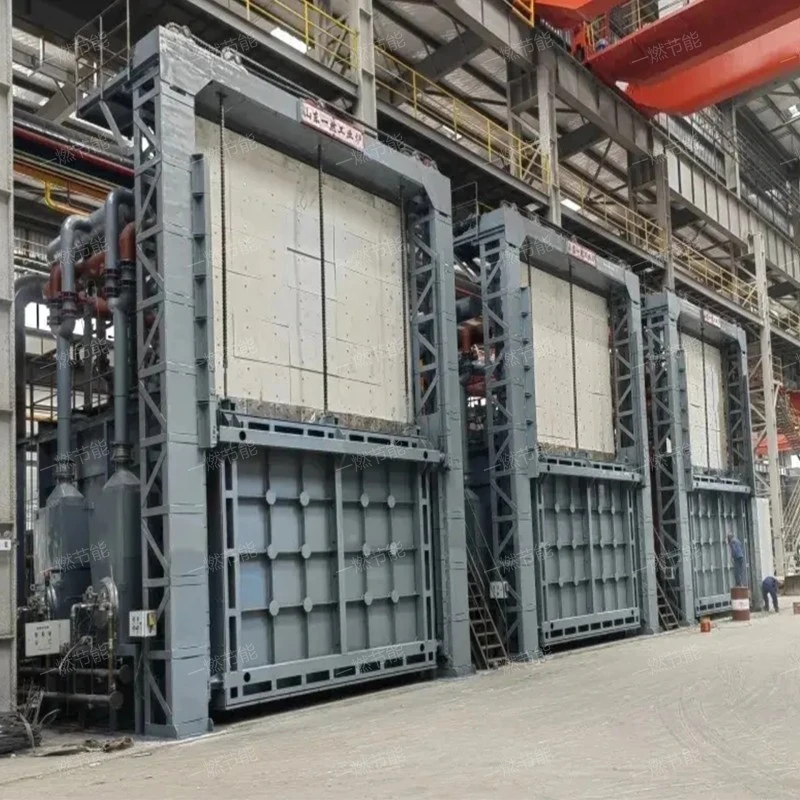

Regenerative gas through heating furnace

2、Structural characteristics of Regenerative gas through heating furnace

The Regenerative gas through heating furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

3. furnace chamber

A space for holding metallic materials for heating.

4. Radiation chamber

The heat load of the main place for Regenerative gas through heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

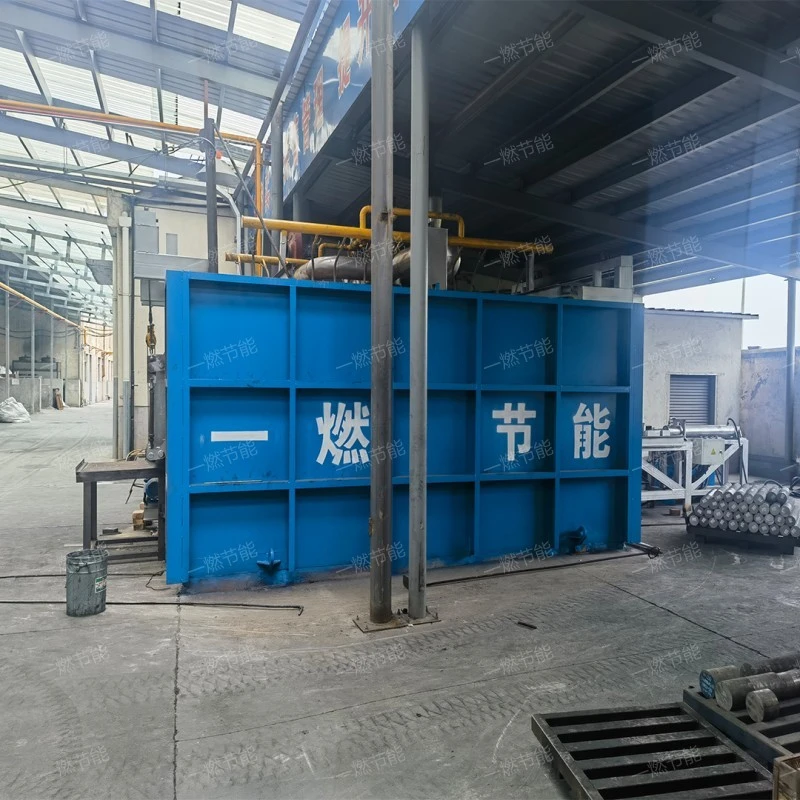

Regenerative gas through heating furnace

3、Regenerative gas through heating furnace function

Regenerative gas through heating furnaceit has the functions of temper, normalizing, Forging heating, anneal and Casting heating，It is an efficient, energy-saving and environment-friendly metal heating device.。

Regenerative gas through heating furnace

4、Regenerative gas through heating furnace advantage

The advantages of Regenerative gas through heating furnace are as follows:

1. Uniform heating

The Regenerative gas through heating furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

2. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

3. Rapid temperature rise

The Regenerative gas through heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

4. Improve product quality

Because the Regenerative gas through heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

5. Intelligent control

The Regenerative gas through heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

Regenerative gas through heating furnace

5、Regenerative gas through heating furnace explanation video

On-site aerial photography of Regenerative gas through heating furnace。

Regenerative gas through heating furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd it is mainly composed of ventilation system, furnace chamber, recovery of waste heat, convection chamber and Radiation chamber。

Regenerative gas through heating furnaceit has the characteristics of energy-efficient, energy saving and environmental protection, Easy to control, energy-efficient and Strong adaptability，Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.，is a common Regenerative gas through heating furnace。
