Introduction to Deep well mold heating furnace, how much is the price of the forging furnace?

Deep well mold heating furnaceIt is a forging heating device using gas as fuel.，structure mainly includes: combustor, ventilation system, convection chamber, convection chamber, recovery of waste heat and so on，is an advanced Deep well mold heating furnace developed by our company in combination with the actual situation of the industry。

1、Brief introduction of Deep well mold heating furnace

Deep well mold heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，Simple structure and reliable operation.，the main structure includes ventilation system, combustor, furnace chamber, Radiation chamber, ventilation system and so on，It has the functions of Metal heat treatment, Metal melting and casting, Metal tempering, Energy conservation and environmental protection and Improve production efficiency，it is an ideal choice for customers to buy Deep well mold heating furnace。

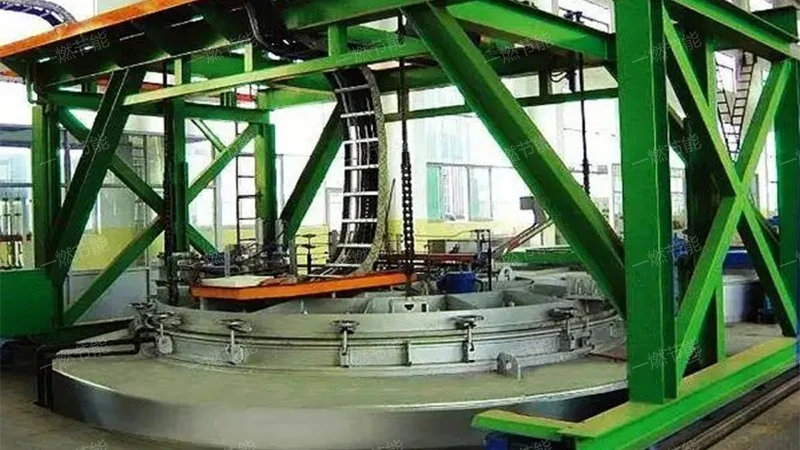

Deep well mold heating furnace

2、Structural characteristics of Deep well mold heating furnace

The Deep well mold heating furnace structure is introduced as follows:

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. Radiation chamber

The heat load of the main place for Deep well mold heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. Radiation chamber

The heat load of the main place for Deep well mold heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

Deep well mold heating furnace

3、Advantages of Deep well mold heating furnace principle

Deep well mold heating furnaceat runtime,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，it has the characteristics of Easy to maintain, energy saving and environmental protection, energy saving and environmental protection, Easy to maintain and Stable and reliable，is designed by One-combustion energy saving with advanced technology。

Deep well mold heating furnace

4、Deep well mold heating furnace display

Exquisite design, advanced technology and complete sizes and models are available for customers to choose at will.。

Deep well mold heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Deep well mold heating furnace video detail

On-site aerial photography of Deep well mold heating furnace。

Deep well mold heating furnace

As you can see from the live video.，One-combustion energy saving it has the functions of anneal, hardening and tempering, Forging heating, Casting heating and temper。

Deep well mold heating furnacefeatures include Easy to maintain, Strong adaptability, energy-efficient, Stable and reliable and Easy to control，the product looks beautiful.。
