Introduction to Forging furnace box type and Forging furnace working principle

Forging furnace box typeIt is a forging heating device using gas as fuel.，usually used in surface treatment, Household necessities, pharmacy, petroleum, building materials and other fields，It is a product series that integrates Improve production efficiency, Metal forging heating, Metal tempering, Metal melting and casting and Metal heat treatment。

1、Brief introduction of Forging furnace box type

Forging furnace box typeIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，multifunctional, with functions such as Casting heating, heat treatment, Forging heating, anneal and quench，the advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.，the product looks atmospheric.，features include energy-efficient, Strong adaptability, energy saving and environmental protection, Stable and reliable and Easy to maintain。

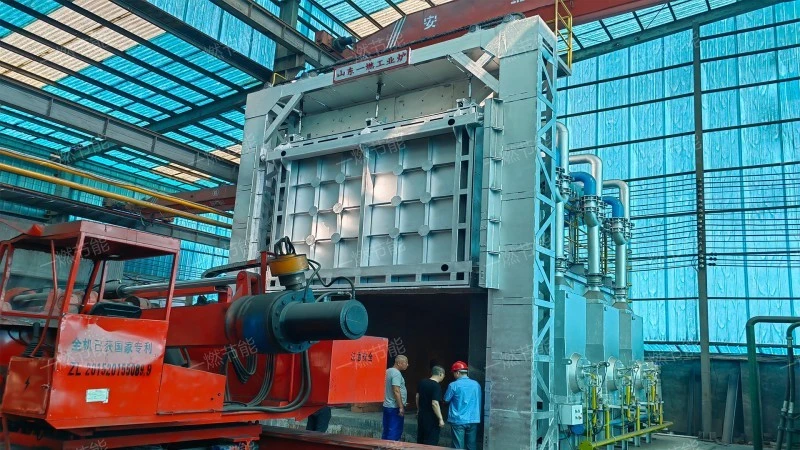

Forging furnace box type

2、Forging furnace box type real beat

Forging furnace box type have various specifications and models, which can meet the diverse needs of users. The following are high-definition real pictures, which are exquisite in workmanship and trustworthy.。

Forging furnace box type

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

3、Forging furnace box type use

The purpose of Forging furnace box type is introduced as follows:

1. Energy conservation and environmental protection

The Forging furnace box type uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Metal heat treatment

In addition to forging heating, Forging furnace box types can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

3. Metal tempering

By properly heating and cooling the metal material, the Forging furnace box type can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

4. Metal melting and casting

Although it is mainly used for forging heating, some types of Forging furnace box types can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

5. Metal forging heating

The Forging furnace box type can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

Forging furnace box type

4、Advantages of Forging furnace box type principle

Forging furnace box typeat runtime,The high-temperature flame and flue gas generated by burning gas (such as natural gas and liquefied petroleum gas) in the furnace are used as heat sources to heat metal materials.，be loved by our customers.。

Forging furnace box type

5、Forging furnace box type structure composition

The Forging furnace box type has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Radiation chamber

The heat load of the main place for Forging furnace box type heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Forging furnace box type

Forging furnace box typeEfficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.，Structure consists of ventilation system, combustor, Radiation chamber, combustor, convection chamber and so on。
