Introduction to Multi functional through forging furnace and Forging furnace structure principle

Multi functional through forging furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.，it has the characteristics of Strong adaptability, Easy to control, energy saving and environmental protection, Strong adaptability and Easy to control。The following is to introduce the Multi functional through forging furnace:

1、Brief introduction of Multi functional through forging furnace

Multi functional through forging furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，in the course of work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.。

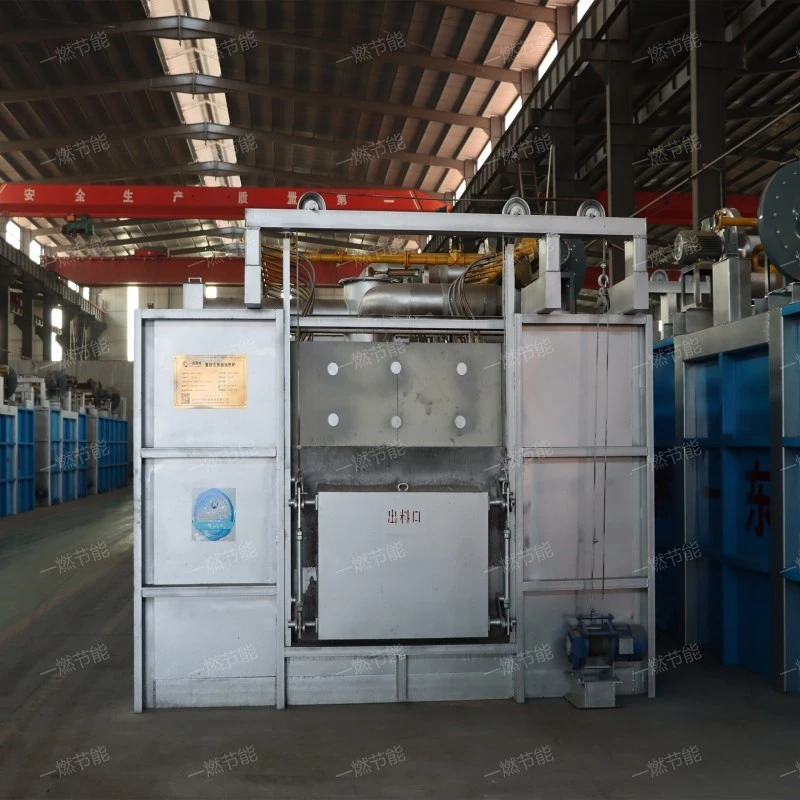

Multi functional through forging furnace

2、Introduction of advantages of Multi functional through forging furnace

The advantages of Multi functional through forging furnace are as follows:

1. Efficient combustion

The Multi functional through forging furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

2. easy to operate

The operation interface of the Multi functional through forging furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

3. easy to operate

The operation interface of the Multi functional through forging furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

4. Improve product quality

Because the Multi functional through forging furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

5. Multiple fuel options

Although the Multi functional through forging furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

Multi functional through forging furnace

3、Multi functional through forging furnace structure

The Multi functional through forging furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. Radiation chamber

The heat load of the main place for Multi functional through forging furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. furnace chamber

A space for holding metallic materials for heating.

Multi functional through forging furnace

4、Multi functional through forging furnace characteristics

The Multi functional through forging furnace features are as follows:

1. Efficient heating

The Multi functional through forging furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

2. Easy to maintain

The structural design of the Multi functional through forging furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

3. Strong adaptability

The Multi functional through forging furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

4. Stable and reliable

The Multi functional through forging furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

5. Strong adaptability

The Multi functional through forging furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

Multi functional through forging furnace

5、Multi functional through forging furnace price consultation

The Multi functional through forging furnace price is introduced as follows:

1. After-sales service level

Service factors always affect the sales price of products, and high-quality service will make customers have greater satisfaction and recognition. The service factors mainly include pre-sales service, in-sales service and after-sales service. For each stage of service, our company takes the price factor into account and makes a reasonable judgment between service and price, so that the Multi functional through forging furnace price and service can meet the actual needs of customers.

2. manufacturing cost

The manufacturer has a fixed raw material supplier, so that the raw material price given by the raw material supplier to the manufacturer will be lower, the raw material cost invested by the manufacturer will be reduced, and the price of the Multi functional through forging furnace will also be reduced.

3. Product technology

The more advanced the technology, the higher the price will be, otherwise the equipment price will be low, and users must pay attention to whether their own technology meets the production requirements when purchasing equipment.

4. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

5. Self quality

Quality is the key factor to determine the price. A high-quality product requires a lot of manpower, material resources and raw materials, so the manufacturing cost of the product is high. Therefore, the price of high-quality products is high. On the contrary, the price of Multi functional through forging furnace is low.

Multi functional through forging furnace

6、One-combustion energy saving delivery site

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Multi functional through forging furnacet operation, and helps customers to deeply understand the Multi functional through forging furnace production process and production site, and gain favorable comments and recognition from customers.。

Multi functional through forging furnace

As you can see from the live video.One-combustion energy saving the product looks beautiful.。

Multi functional through forging furnaceThe high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，It is an efficient, energy-saving and environment-friendly metal heating device.，multifunctional, with functions such as hardening and tempering, normalizing, hardening and tempering, temper and anneal。
