Introduction to Industrial well tube furnace and heating furnace structure principle

Industrial well tube furnaceIt is a forging heating device using gas as fuel.，it is usually composed of Radiation chamber, recovery of waste heat, furnace chamber, convection chamber and convection chamber。

1、Brief introduction of Industrial well tube furnace

Industrial well tube furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，at the start of the operation,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，multifunctional, with functions such as hardening and tempering, normalizing, hardening and tempering, anneal and quench，super quality and competitive price。

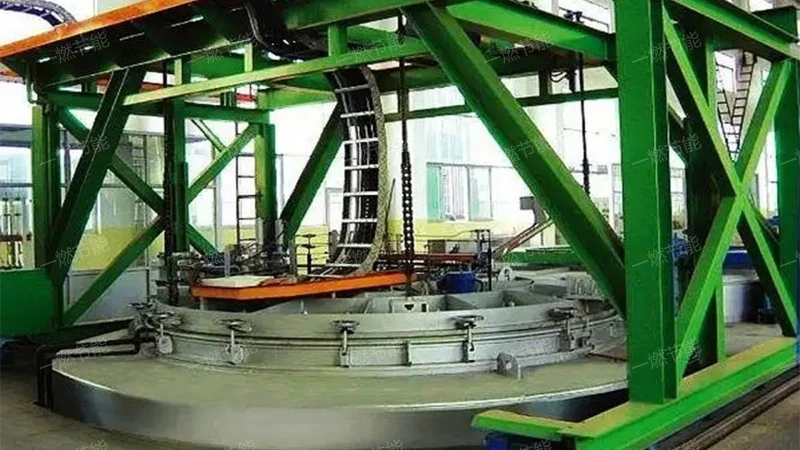

Industrial well tube furnace

2、Structural advantages of Industrial well tube furnace

The Industrial well tube furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

4. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

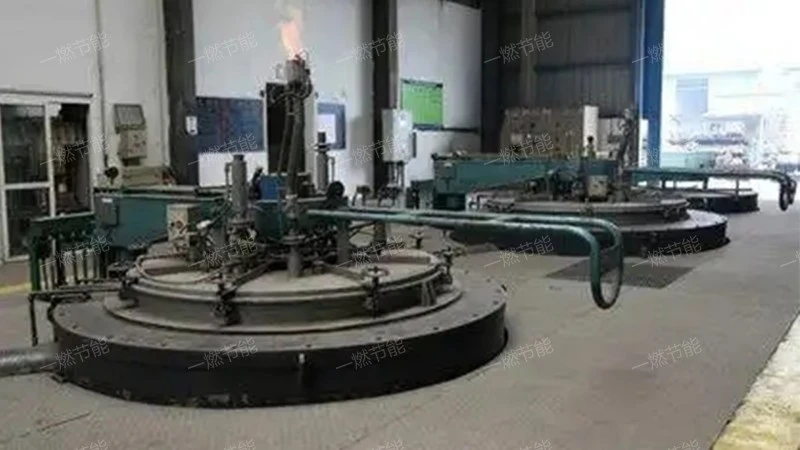

Industrial well tube furnace

3、Functional advantages of Industrial well tube furnace

The advantages of Industrial well tube furnace are as follows:

1. Efficient combustion

The Industrial well tube furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

2. Wide application range

The Industrial well tube furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

3. Extend the service life of equipment

The Industrial well tube furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

4. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

5. Improve product quality

Because the Industrial well tube furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

Industrial well tube furnace

4、Industrial well tube furnace use

The purpose of Industrial well tube furnace is introduced as follows:

1. Energy conservation and environmental protection

The Industrial well tube furnace uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

2. Metal heat treatment

In addition to forging heating, Industrial well tube furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

3. Metal forging heating

The Industrial well tube furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

4. Improve production efficiency

The Industrial well tube furnace has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

5. Metal tempering

By properly heating and cooling the metal material, the Industrial well tube furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

Industrial well tube furnace

5、Advantages of Industrial well tube furnace principle

Industrial well tube furnaceat runtime,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，it can be used in surface treatment, Household necessities, light industry, material, electron and other industries，Mainly used forMetal melting and casting,Metal forging heating,Metal tempering,Energy conservation and environmental protection andMetal heat treatment，be loved by our customers.。

Industrial well tube furnace

6、Brief introduction of Industrial well tube furnace

Industrial well tube furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Strong adaptability,Easy to control,Stable and reliable,Easy to maintain,energy saving and environmental protection，It can be used for Metal melting and casting, Improve production efficiency, Metal forging heating, Metal melting and casting, Energy conservation and environmental protection, Metal heat treatment and so on。

Industrial well tube furnace

Industrial well tube furnacemultifunctional, with functions such as temper, Forging heating, heat treatment, Casting heating and normalizing，usually used in petroleum, pharmacy, machinery, building materials, metallurgy and other fields。
