What is a Regenerative tube quenching furnace? Introduction to the Working Principle of Forging furnace

Regenerative tube quenching furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，the product looks beautiful.，support customization。The following is to introduce the Regenerative tube quenching furnace:

1、Brief introduction of Regenerative tube quenching furnace

Regenerative tube quenching furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，at the start of the operation,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，is a kind of high quality and low price Regenerative tube quenching furnace。

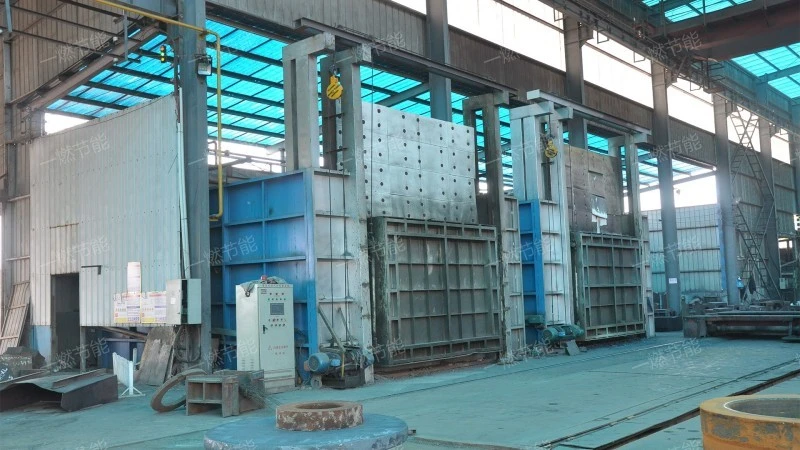

Regenerative tube quenching furnace

2、Regenerative tube quenching furnace function

Regenerative tube quenching furnaceit has the functions of Forging heating, temper, quench, heat treatment and Forging heating，be loved by our customers.。

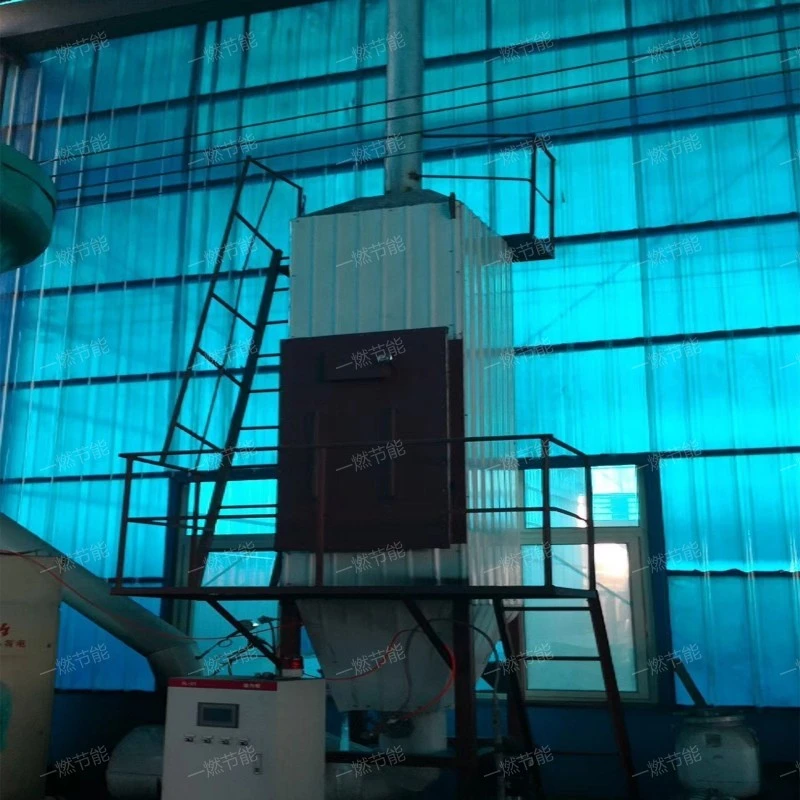

Regenerative tube quenching furnace

3、Structural characteristics of Regenerative tube quenching furnace

The Regenerative tube quenching furnace has the following structure

1. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

2. furnace chamber

A space for holding metallic materials for heating.

3. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

4. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

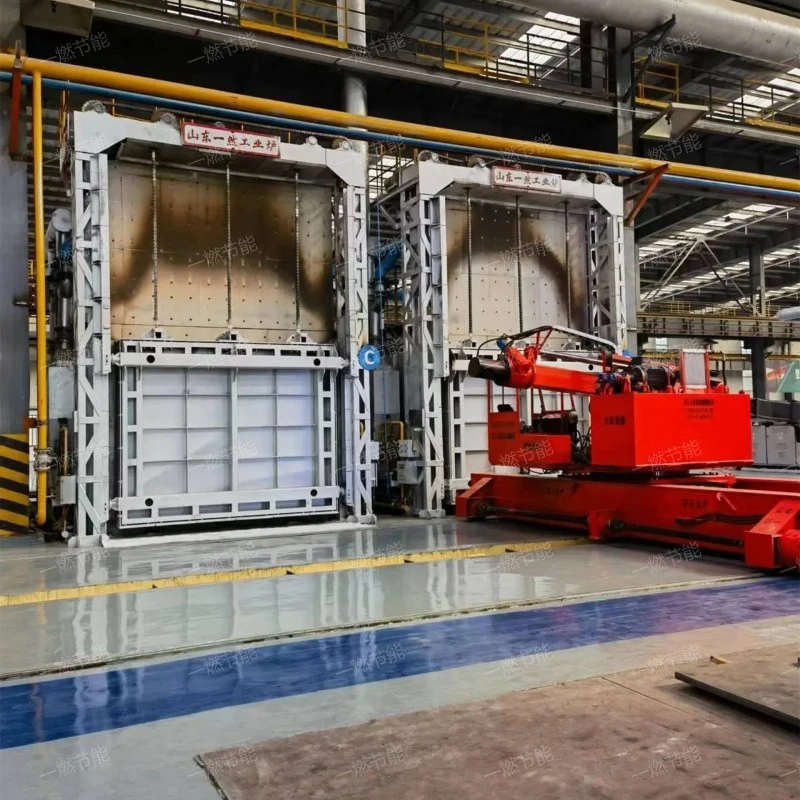

Regenerative tube quenching furnace

4、Regenerative tube quenching furnace video live broadcast

Speak directly with facts on the spot。

Regenerative tube quenching furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd the product looks atmospheric.。

5、Regenerative tube quenching furnace principle

Regenerative tube quenching furnaceThe high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，is based on One-combustion energy saving is a kind of Regenerative tube quenching furnace manufactured by One-combustion energy saving。

Regenerative tube quenching furnace

6、Advantages of Regenerative tube quenching furnace principle

Regenerative tube quenching furnacethe principle is simple.Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，features include Strong adaptability, Easy to maintain, Easy to control, energy-efficient and Stable and reliable，It is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.。

Regenerative tube quenching furnace

Regenerative tube quenching furnacethe advantage is It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.，it can be used in metallurgy, material, electron, pharmacy, Machinery manufacturing and other industries，is a popular Regenerative tube quenching furnace。
